Hospital´s General Equipment

- Office Furniture:

Creating personalized, feasible, effective, human and sustainable health areas adapted to the changes the health sector is going through, and the emergence of new technologies and new working methods.

Space optimization and distribution; communication, collaboration and meeting areas, internal and public service needs; privacy; the ergonomics of each position; the sustainability of the set-up and the welfare and comfort of all those who work at the Centre, and the patients, residents and visitors.

Ergonomic furniture | Comfortable and pleasant environment Optimizes both space and work processes and equipment needs | Space to provide assistance

Clinical Session Room | Waiting and Visitors Rooms | Medical Offices | Classrooms and Libraries | Examination Rooms | Cafeterias/ Vending Areas



Elements specially designed for elderly and dependent people: Bedrooms | Living Rooms | Medical Rooms

- Clinical Furniture

- Laboratory

A laboratory must have a functional and flexible service system that can adapt to future distribution changes.

It must offer different solutions in order to adapt the service point to the needs of the operator. These solutions must be combinable in order to make every laboratory a versatile workspace.



Structures are made of 1.5-mm thick steel with an organic coating of epoxy-polyester resin, in accordance with normative DC01.

 Resistant wheels.

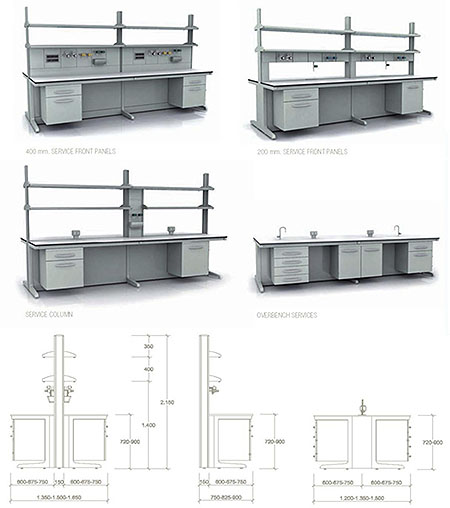

 Benches and height of the shelves are easily and simply adjusted.

General Characteristics

Framework

Built from extremely robust 6063 T6 injected aluminium, our frames have an organic coating of epoxy-polyester with a metallic finish. Can hold a vertical load of 200 kg per linear meter.

Plinth

The frames are finished off with a cold-laminated steel plinth with an organic coating of epoxy-polyester.

Front Slider Beam

Built with 6060 T25 extruded aluminium with an epoxy-polyester coating with a metallic finish.

Service Cover Panels

The channels for cables and pipe are covered with service cover panels made of DC.01 cold-laminated steel with an epoxy-polyester coating.

Cabinets

These C-shaped freestanding structures are designed to use sliding or wheeled cabinets.

Pouring Benches

 Designed to carry out liquid pouring tasks. They include:
 Side panels made of compact resin
 Stainless steel drip up
 Chrome taps with automatic shut-off
 Adjustable lighting system.

Scaffold Bench

The scaffold bench has been specially designed to carry out chemical engineering projects and large assembly work.



Balanced Benches

Systems act like filters, absorbing a high amplitude percentage of frequency vibrations.





Mobile Tables

It is becoming more and more common to find laboratories that carry out work sporadically, which makes mobile tables rather useful.



Sink Units

• Ceramic: highly resistant to chemicals
• Epoxy Resin: not as hard as ceramics
• Polypropylene: less aggressive materials
• Stainless Steel: cleaning areas.





Stainless Steel Furniture

For laboratories requiring maximum levels of cleanliness and hygiene:
Benches for washing areas
 All types of sinks
 Preparation and work benches
 Material distribution carts
 Autopsy tables
 Shelves
 Tall display cabinets
 Wall mounted cabinets.

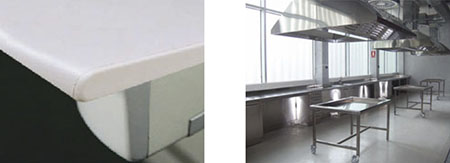

worksurfaces

Ceramic Surface highly resistant to chemicals and well-suited for laboratories using very aggressive products. This is an extremely hard material, and is resistant to scratches, impact and contact with high temperatures.

Trespa Toplab-Plus Work surface with a medium-high resistance to chemicals exceptionally well suited for nearly any type of work.

Trespa Athlon Material with lower chemical resistance than Top Lab-Plus but with good physical performance.

Stainless Steel Good chemical, thermal and mechanical performance. It allows for joint-less table construction for areas with special requirements.

Melamine High-pressured laminate with a front post-form and PVC side edging. Low resistance to wet conditions and fire. Only suitable for desktops.

Granite Material with a high chemical and physical resistance.



.

Durability

Safety

Cold-laminated steel

M0-tolerance to fire and remain completely unchanged in wet or contaminating conditions.

storage1
CABINETS

Capable of supporting 40-kg loads. Mounted on telescopic guides. For low or high benches.

Wall Mounted Cabinets
storage2
Safety Cabinets
storage3
Storage Cabinets & Glass Display
storage4
Acid and Alkaline Storage Cabinets
storage5


Drawers

Built of twin soundproof steel panels with shock absorbers.

Doors

Total aperture is 270º.

Sliding

Strength as well as smooth sliding action.

Inner Shelves

Inner panels can store tall bottles.

storage6

The fundamental purpose of this type of equipment is to guarantee the safety of users at all times. They must be made of materials resistant to mechanical, chemical and thermal forces, and must not be easily combustible.

Due to the nature of the work usually carried out in a fume hood, there is a fire hazard, which may result in explosions or fires inside the apparatus.

They must incorporate systems enabling climate control of the room or building:

• Airflow Indicator Control
• Overheating Alarm
• 100% Incombustible Construction

Standard DIN 1946 recommends that chemical laboratories renew 25 m3 of air per m2 of laboratory space per hour.

FOR BETA AND GAMMA RADIOISOTOPES

FOR PERCHLORIC ACID (PC)

FOR STRONG ACIDS (AC)

fumehoods1
fumehoods2
fumehoods3

Scrubbers

complementary1


Showers and Eye Washers

complementary4

Refrigeration Equipment

complementary2


Canopy Hoods

complementary5

Shelving

complementary3


Stools And Chairs

complementary6

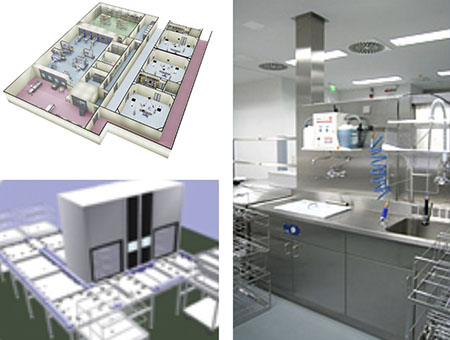

- Sterilization

A wide range of products includes washing and disinfection equipment, water treatment systems, manual and automatic loading / unloading systems, transport trolleys, sealing machines, furniture and storage solutions.  We also provide IT software packages for monitoring the CSSD and the entire operating theatre area.

sterilizationcentres

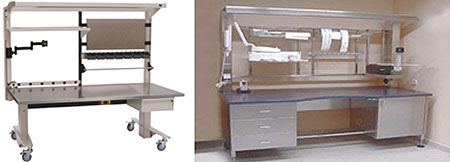

Workstations

Adjustable tables with rounded edges that allow comfortable access to worktops.

preparationarea1

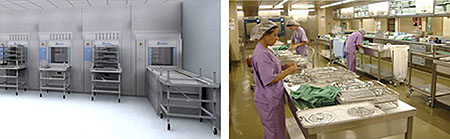

Rack Transfer

To facilitate the transfer of loading and unloading racks between the washing and preparation areas when these areas are separated by double-door thermal disinfecting washers. Matachana offers a variety of solutions that can be tailored to customer requirements.

preparationarea3

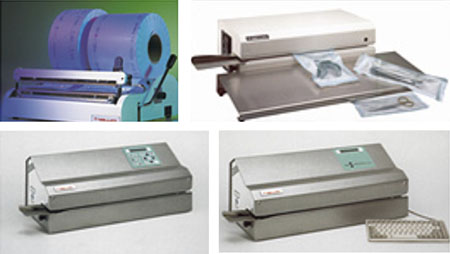

Sealing Machines

Manual sealing machines for the dental sector and small health centers.

preparationarea2

Cupboard trolleys designed for the transport of sterile materials

storagearea1

Furniture and
fittingsmade from
high-qualitystainless steel

storagearea2

Cabinet for
storingsterile
material

storagearea3

Manual
slash window
.

storagearea4

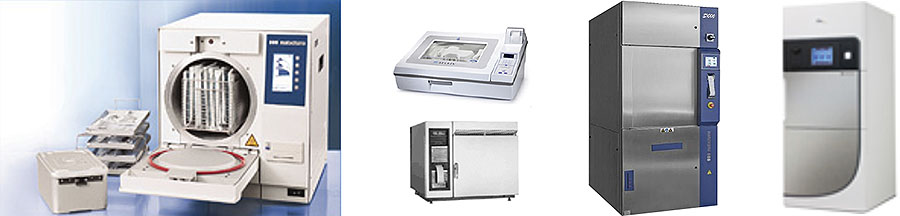

Sterilizers for specific uses in diverse sectors: hospitals, health centers, research centers and general industrial use.

Liquid chemical sterilization provides fast and convenient reprocessing of cleaned, reusable, immersible and heat-sensitive critical and semi-critical devices.

Ethylene Oxide sterilization for use with heat and moisture sensitive items. A safe and economical sterilization cycle.

Vaporized Hydrogen Peroxide Sterilizer.

Steam Sterilizers (Autoclaves) Steam sterilizers designed to meet the requirements of hospitals, medical centers, laboratories, universities and research centers. Destroys medical waste or biocontaminated samples.


sterilizers

- Morgue

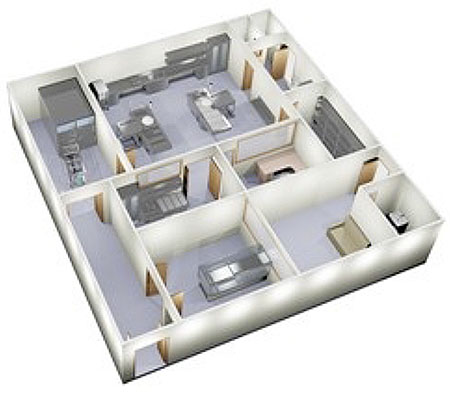

Complete equipment for autopsy rooms in hospitals,funeralparlors and judicial buildings

morgue1


Autopsy Tables
 With or without elevation
 With or without aspirator
 Made of AISI 316 stainless steel
 Washing tray with tap and valve
 Water diffusers and curtain
 Extraction system

morgue2

Dissecting Tables
Central or wall adjacent
 With or without aspirator
 Made from AISI 316 stainless steel

Upper worktop divided into two areas.

morgue3


Accessories
 Cabinets for sterile materials
 Medical washbasins
 Work area furniture with drawers, basin, cabinet, shelves, etc.
 Lamps and integrated video systems
 Automatic electric sliding doors
 Stations for the treatment of bio
-contaminated effluents
 Contaminated effluents

morgue4

Modular Mortuary Cabinets for Storage or Freezing

morgue5

- Radiology

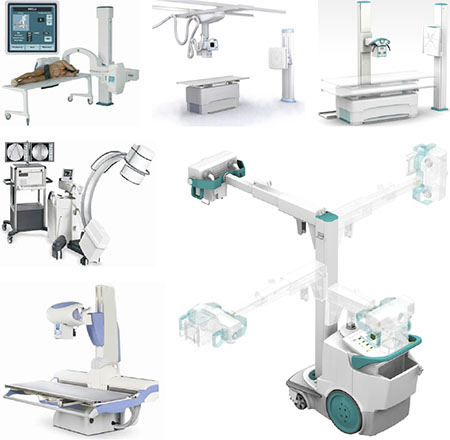

Radiology is where the company began, and has now becoming the main business activity by sales volume. Innovating technology applied to X-Ray generators, with exhaustive quality control and processing, have made this division of the company a world leader in the OEM X-Ray generator business. Exports have consistently grown, and these best-selling units are now exported to more than 120 countries. The R&D department is continuously working on developments to meet the ever-increasing technology requirements and competitiveness requested by RADIOLOGIA-SEDECAL partners and customers.

radiology
